BET Boiler Models
You will find these versatile , rugged biomass boilers suitable for many applications with outputs from 90kw up to a massive 1000kw.
Each sawdust system will require the Boiler Unit plus twin wall Flue, a feedbin/conveyor kit and a control box.
Get in touch to reserve your unit for £1000, then 1/2 the balance once feed system or kube is in production, then the balance before delivery. All prices plus VAT and Delivery.

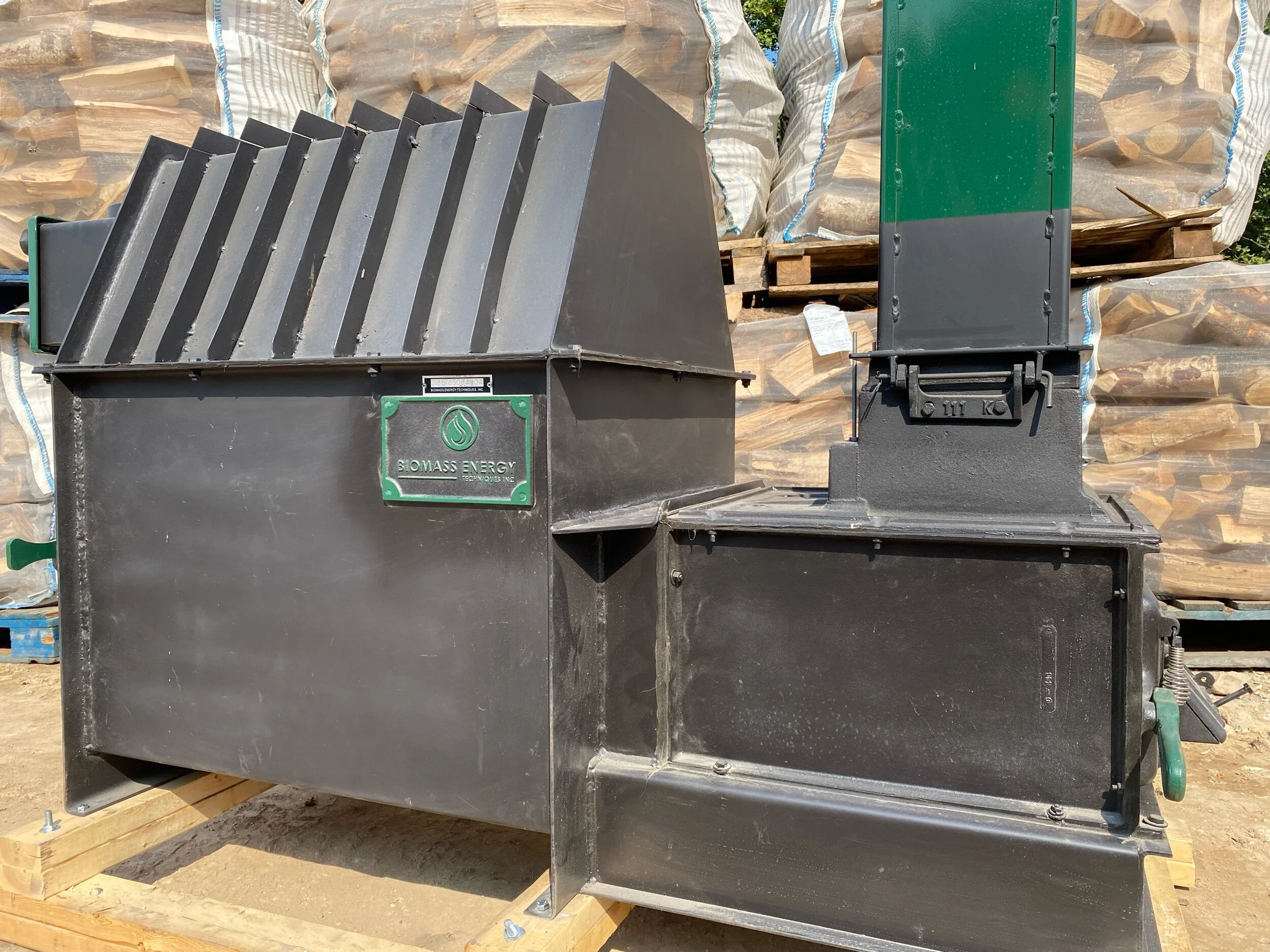

BET Number 111, Hot Air Convector Heater (used in our Kiln Kube).
Current stock sold, reserve next batch for £500
(Air Model (no water), Manual Fill Shown).
BTU Output - 270,000, Thermal Energy - 80kw,
Width x Length (cm) - 92x178,
8’’ twinwall flue. 3-4m
Estimated fuel consumption (kg), 6-15
Operating Temperature - 1250 degrees,
Number 111 Hot air - next batch £13,600

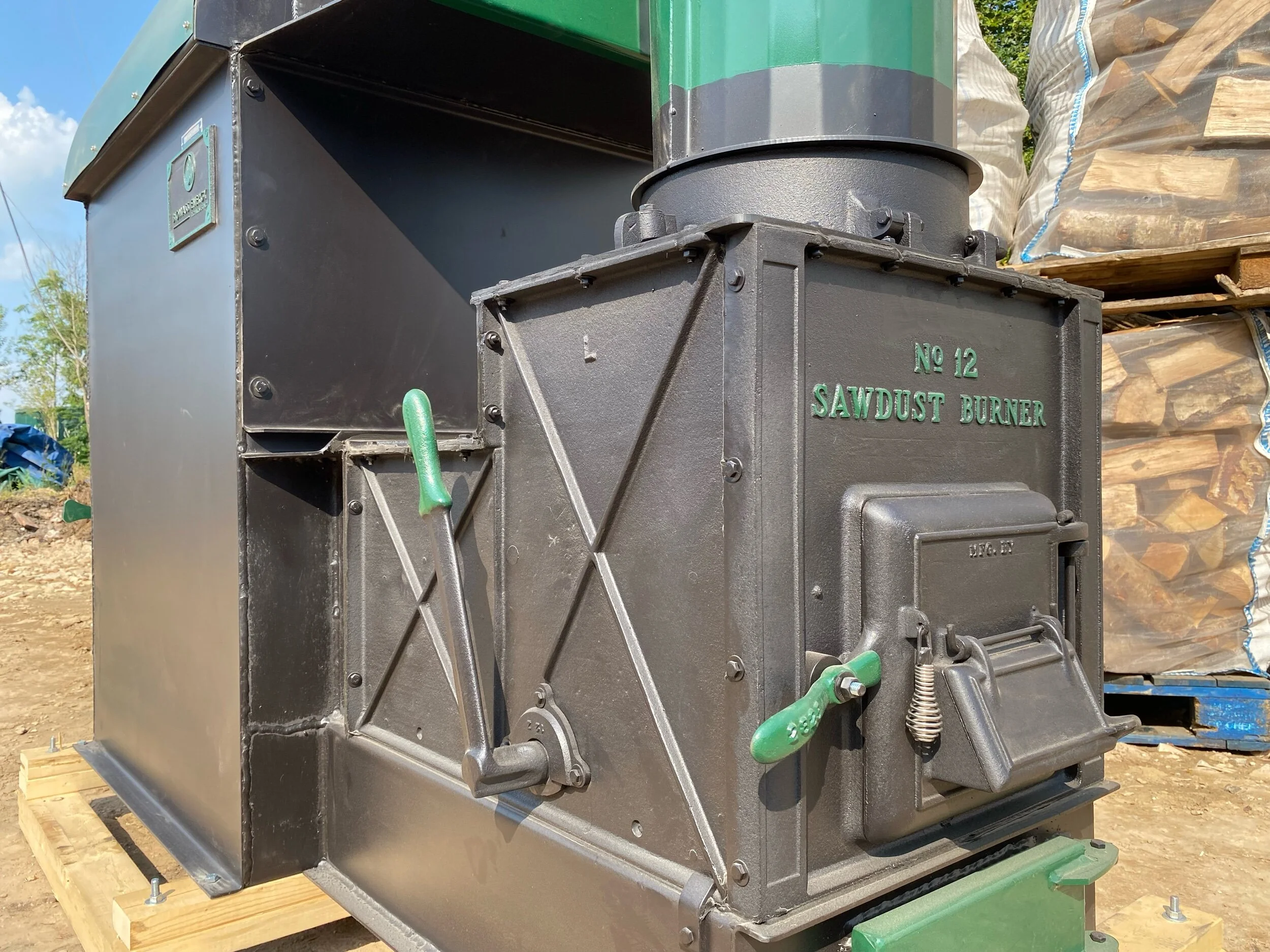

BET Number 12, 90kw Boiler
1x ex-demo feed system with new boiler & 2x new full systems available now from stock.
Thermal Energy - 90kw,
(Suitable for a Kiln Services Double Kiln)
Width x Length (cm) - 92x213,
8’’ twinwall flue. 4-5m
Estimated fuel consumption (kg/hr), 6-18
Operating Temperature - 1250 degrees,
Number 12 Boiler full kit £38,000 with control & small feed bin, plus options. - (next batch £46,000)
RHI certificate (up to 55% moisture content). Swap your old boiler & keep your payments.
BET Number 14
1x in stock.
Thermal Energy - 150kw,
(Suitable for a Kiln Services triple kiln).
Width x Length (cm) - 122x254,
12’’ twinwall flue. 5-7m
Estimated fuel consumption (kg/hr), 8-30
Operating Temperature - 1250 degrees,
Number 14 Boiler - full kit £ 44,700 includes control & large feed system, plus options. (next batch £54,700)
RHI certificate (up to 55% moisture content). Swap your old boiler & keep your payments.

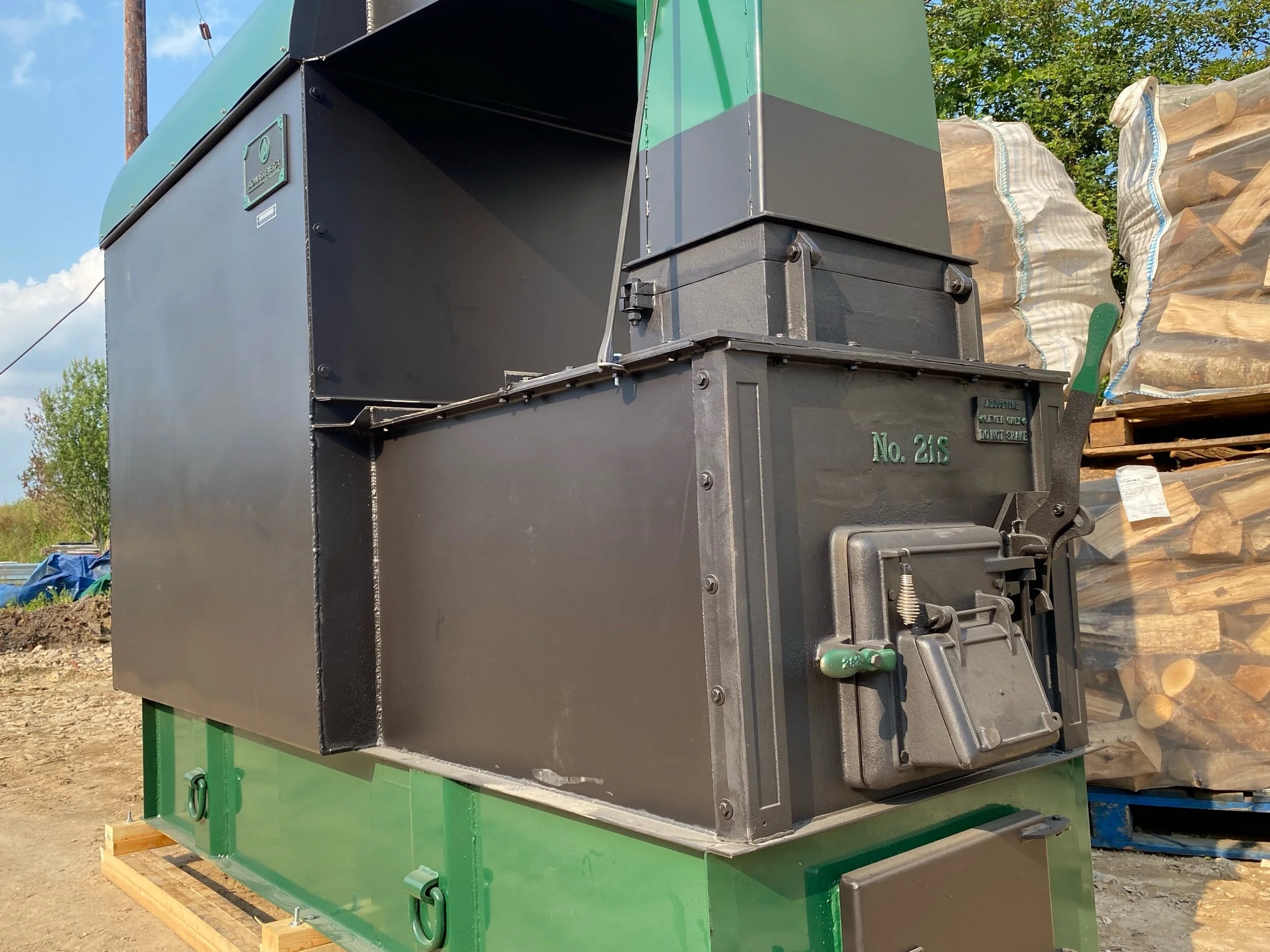

BET Number 21-S
Thermal Energy - 210kw,
Width x Length (cm) - 122x305,
16’’ twinwall flue. 6-8m
Estimated fuel consumption (kg/hr), 12-45
Operating Temperature - 1250 degrees,
Number 21 Boiler - Full kit £60,500 includes control & large feed system.

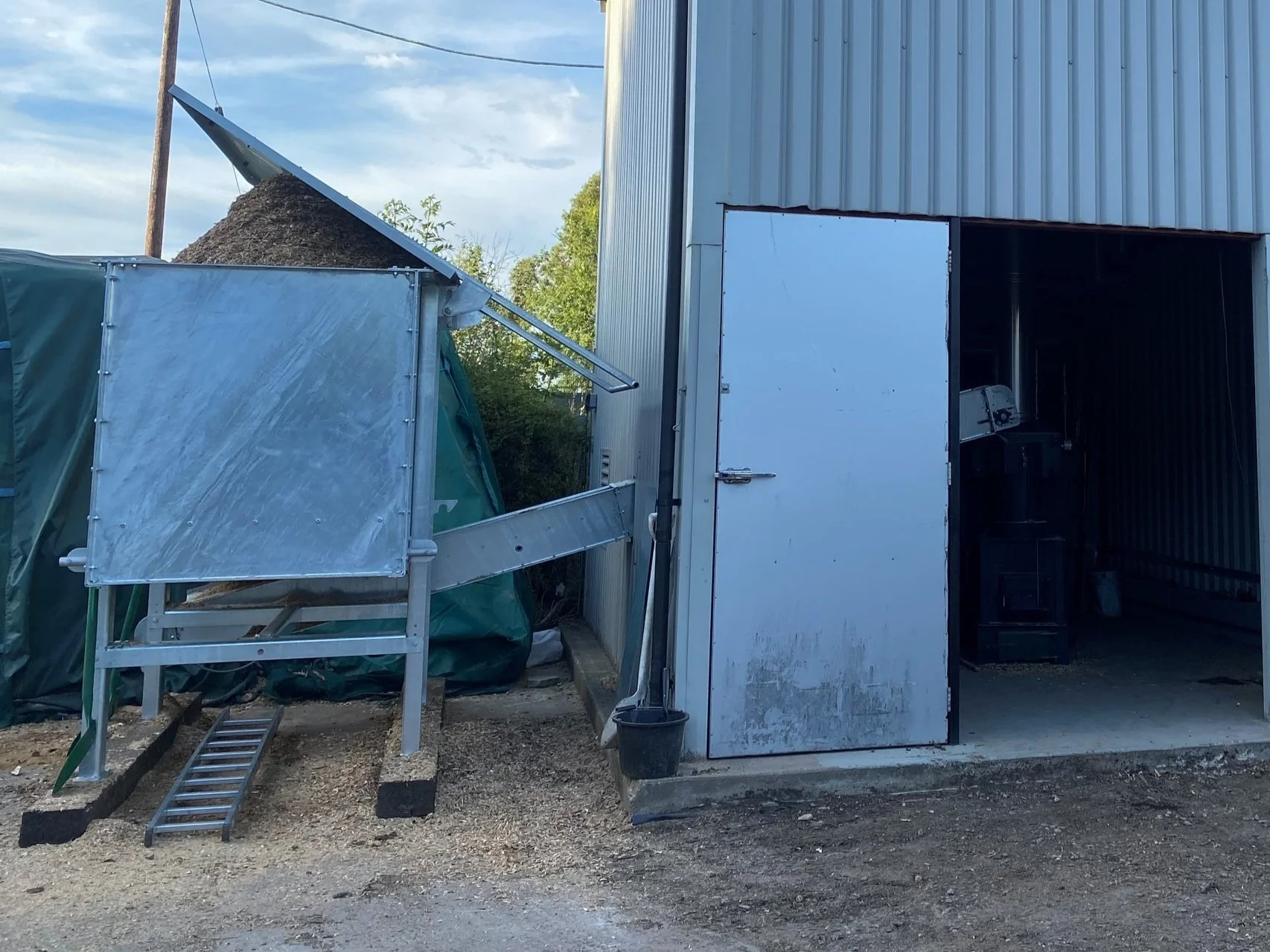

Boiler Feed System
2 month lead time.
Available in two sizes and each size has a hight extension option. Heavy duty and galvanised for long life, designed to hold enough fuel for an average of 2 days run time. Scrapers take sawdust/chip from the bottom of the feed bin to be dropped onto the lift conveyor. This method allows odd sizes like lumps and sticks (even stones) etc to be drawn in to the boiler without blockages like auger fed units. Perfect to use every bit of waste possible.
Small Feed Bin and lift conveyor 1500x2400
Optional 2 ft high feed bin extension - £2200
Optional Manual Lid - £1200
Large Feed Bin and Lift Conveyor 2000x3000
Optional 2ft high feed bin extension - £3500
Optional Manual Double Lid - £2400

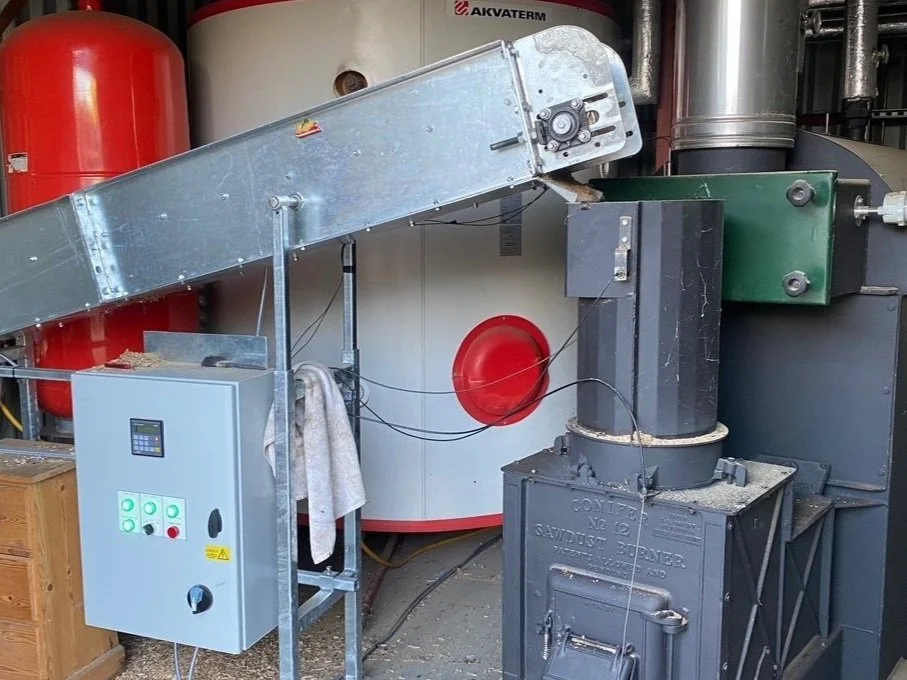

Boiler Control System
Available now.
Suitable for all our boiler units, a single phase control unit for the feed system. Water and Stack temperature probes control an integral linear actuator, slowly adjusting the boiler’s air damper. A beam sensor mounted on the feed chute activates the conveyor system to give additional fuel as and when required.
Easy water temperature adjustment.
Simple and reliable unit
BET Number 31-S
Special order only.
BTU Output - 2187,000,
Thermal Energy - 641kw,
Width x Length (cm) - 148x420,
Estimated fuel consumption (kg), 52-210
Operating Temperature - 1250 degrees,

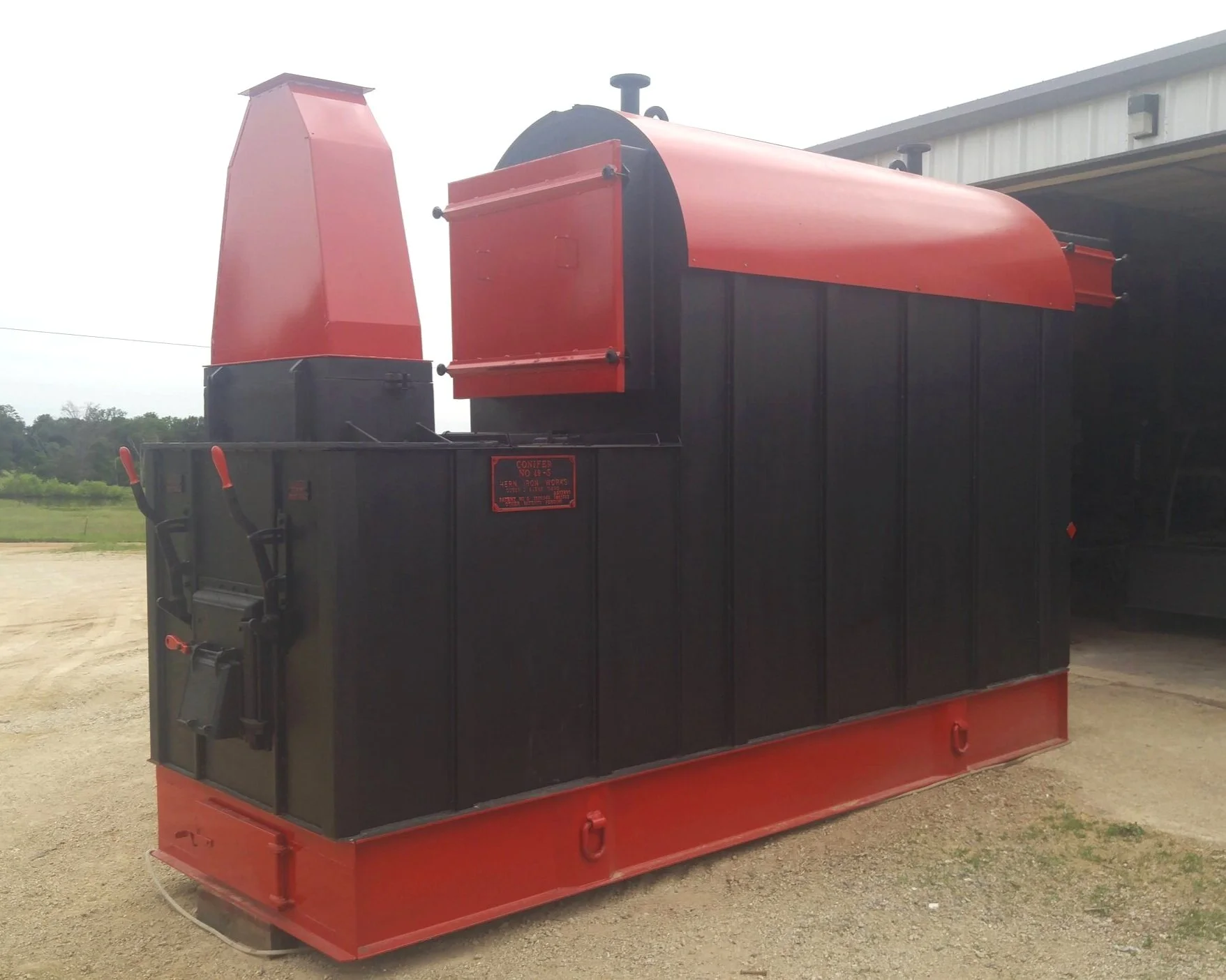

BET Number 49-S
Ideal for G30,40 & 50 biomass producers. Dry your product with your fines, not your saleable product!
Special order only.
BTU Output - 3500,000,
Thermal Energy - 1026kw,
Width x Length (cm) - 163x488,
Estimated fuel consumption (kg), 84-338
Operating Temperature - 1250 degrees,
